압력 센서
>

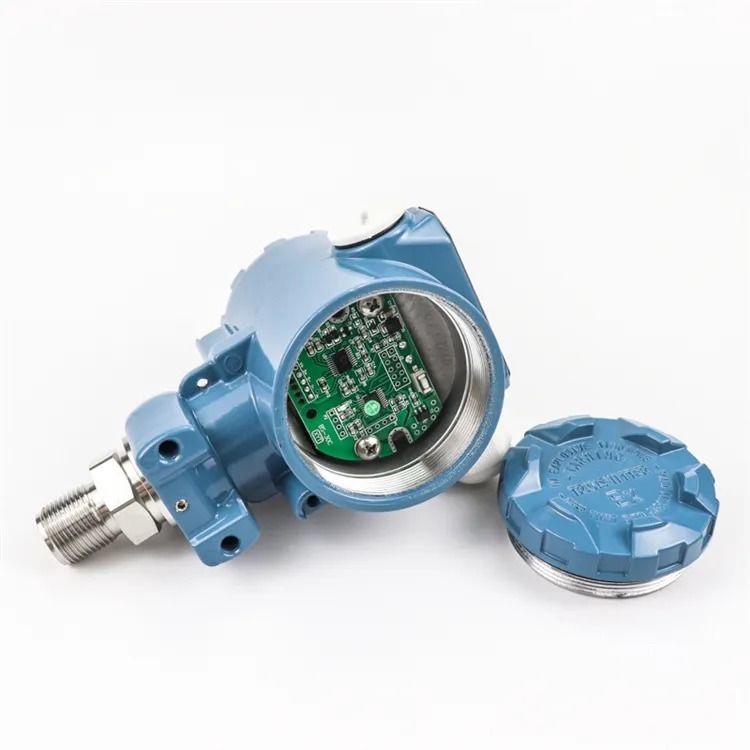

4-20ma Contact Pressure Transducer Transmitter Calibration Hydrostatic Water Pressure Sensor

4-20ma Contact Pressure Transducer Transmitter Calibration Hydrostatic Water Pressure Sensor

제품 상세정보:
원래 장소: 중국
브랜드 이름: RUIJIA
인증: CE/ROHS
모델 번호: RJ800
상세 정보
원래 장소:
중국
브랜드 이름:
RUIJIA
인증:
CE/ROHS
모델 번호:
RJ800
제품 이름:
증압기
압력 범위:
0.1-0-100MPA
측정 매체:
기름, 물, 가스
출력 신호:
4 ~ 20MA/0-10V/0-5V/0.5 ~ 4.5V/RS485
정확성:
00.1%
인클로저 보호:
IP65
강조하다:

High Light

강조하다:

Pressure Transducer Transmitter

,

4-20ma Contact Pressure Transducer

,

Hydrostatic Water Pressure Sensor

거래 정보
최소 주문 수량:
1
가격:
$40-47
포장 세부 사항:
나무 상자 또는 판지 상자
배달 시간:
5-15 작업 일수
지불 조건:
,L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram
공급 능력:
2000PC/Month
제품 설명

 4-20ma Contact Pressure Transducer Transmitter Calibration Hydrostatic Water Pressure Sensor


RJ800 series pressure transmitter pressure sensitive core adopts high performance silicon piezoresistive pressure filling core. The internal ASIC converts the sensor millivolt signal into standard voltage, current or frequency signal, which can be directly connected with computer interface card, control instrument, intelligent instrument or PLC. Current output mode can be used for distance transmission. It has small volume, light weight, all stainless steel sealing structure and can work in corrosive environment. The product is easy to install and has high anti-vibration and anti-impact performance. It is widely used in process control, aviation, aerospace, automobile, medical equipment, HVAC and other fields.

Mainly technical parameters


Model

RJ800

Power supply

24VDC

Output single

4~20mA,1~5V,0~10V,RS485

Measuring range

-0.1...0...100Mpa

Compensation temperature

-10~70℃(Standard )

-10~400℃(High Temperature type)

Medium temperature

-40~80℃

Environment temperature

-40~85℃

Measuring media

Gaseous,Liquid,Water

Pressure type

Gauge pressure,Absolute pressure

Accuracy

0.1%F.S,0.25%F.S,0.5%F.S(standard)

Zero tempe drift

±0.03%F.S/℃

Sensitivity temperature drift

±0.03%F.S/℃

Overload

200%F.S

Long-term stability

≤0.2%F.S/year

Inherent frequency

5kHz~650kHz

Protection grade

IP65

4-20ma Contact Pressure Transducer Transmitter Calibration Hydrostatic Water Pressure Sensor 0

4-20ma Contact Pressure Transducer Transmitter Calibration Hydrostatic Water Pressure Sensor 1

4-20ma Contact Pressure Transducer Transmitter Calibration Hydrostatic Water Pressure Sensor 2

4-20ma Contact Pressure Transducer Transmitter Calibration Hydrostatic Water Pressure Sensor 3
