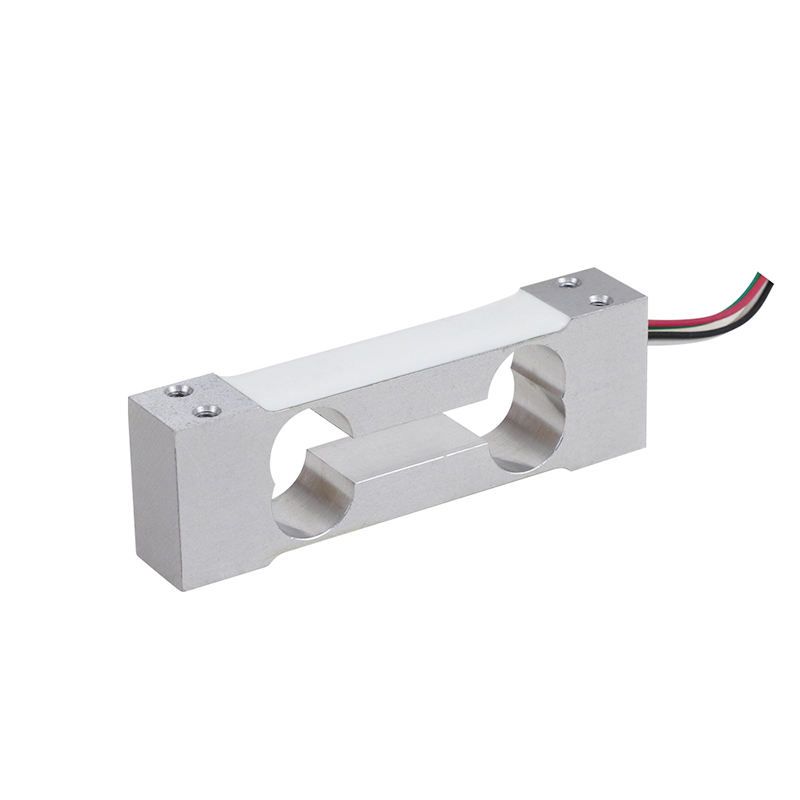

High Precision Mini Beam Load Cell for Platform Scale
Cantilever beam weighing sensor, also known as shear beam weighing sensor, is mostly rectangular in shape, and the strain zone is in the middle of the sensor. Cantilever beam weighing sensor has the characteristics of simple structure, convenient installation, reliable use, long service life and high cost performance. Cantilever beam weighing sensors have been widely used in truck scales,main axle load meters, small scale and platform scales ...........
Product features
1.Wide range of capacities from 0 to 2kg
2.Dust-proof seal, wide measuring range, high precision, stability and reliability
3.High structural strength and,convenient installation and use.
4.It is suitable for all kinds of automatic measurement control systems of force measuring and weighing industry.
|
|
|
|
Measuring range
|
0-2kg
|
Material
|
Aluminium alloy
|
|
Output sensitivity
|
2.0±0.05mV/V
|
Impedance
|
350Ω
|
|
Zero output
|
±1%F.S.
|
Insulation Resistance
|
≥5000MΩ/100VDC
|
|
Non-linear
|
0.02%F.S.
|
Operating Voltage Range
|
5-15V
|
|
Hysteresis
|
0.03%F.S.
|
Operating Temp Range
|
-20-80℃
|
|
Repeatability
|
0.02%F.S.
|
Safe overload
|
150%
|
|
Creep(30min)
|
0.03%F.S.
|
Maximum Overload
|
200%
|
|
Temp.effect on output
|
0.03% F.S. / 10ºC
|
Cable size
|
Φ5x3m
|
|
Temp.effect on zero
|
0.03% F.S. / 10ºC
|
Cable ultimate pull
|
10kg
|
|
Response frequency
|
10kHz
|
TEDS
|
|
Packing
Kit Weighing Scale Sensor Load Cell For Livestock
♦ Package List:
4 * Load cell, 1*Junction box, 1*Weight indicator
♦ Packing:
packing materials are eco-friendly and really protect your product well. Every item has their own independent packing with Carton box.
♦ Delivery:
A wide range of options : Express(Fedex, DHL, TNT, EMS, UPS etc.) air and shipping
FAQ
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.
Q2: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q3: What is the payment terms?
A: T/T, Western Union, Paypal, Escrow alibaba is acceptable.Escrow is same like paypal, after you place the order and make the payment on alibaba.com, alibaba company will notify us to make the shipment, your money won’t be released until you get the goods. If we don’t make the shipment, you still can take back your money.
Q4: How long is your warranty period?
A: Our warranty period is 12 months.
