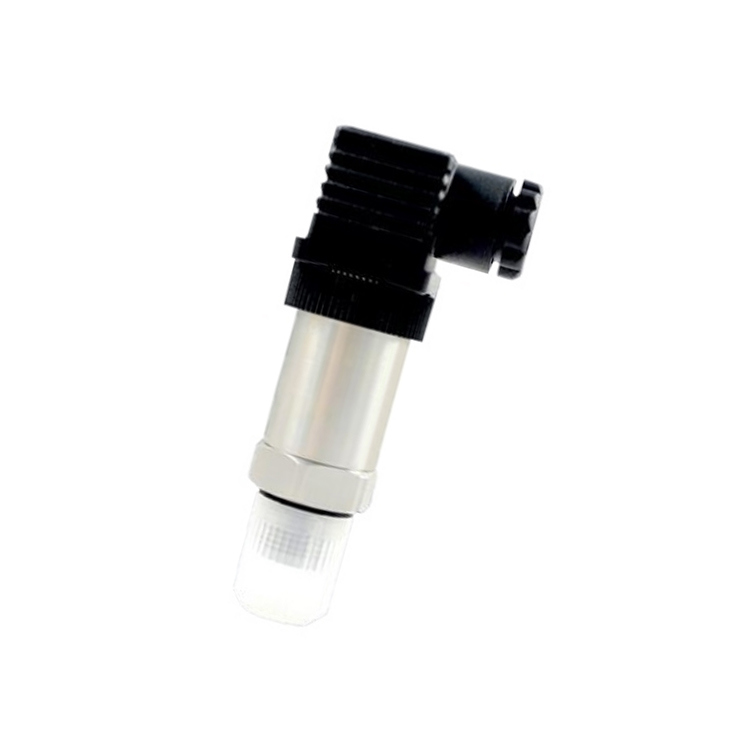

Overview
Pressure sensor for water/viscous liquid pressure measurement has optional output signal, such as 4-20mA/0-20mA/0-5V/1-5V/0-10V/RS485.
Application: Pressure sensor is widely used in food, medicine, hygiene and brewing industries.
Specification:
| Weight | 0.4kg |
| Measuring range * | 0~35MPa (0~350bar/0~5076psi) |
| Pressure type | Gauge pressure (standard) Contact us for absolute pressure, sealed pressure type (note that the measuring range for these two types must ≤1MPa) |
| Measure medium | Pure water, wine, fruit juice, viscous liquid |
| Power supply * | DC 12V, DC 24V, DC 12-36V |
| Output signal * | 2 wire: 4-20mA, 0-20mA 3 wire: 0-5V, 1-5V, 0-10V RS485 |
| Accuracy * | ±0.5%FS, ±0.3%FS, ±1%FS (when output signal is 0-5V or 0-10V) |
| Zero temperature drift | ±0.03%FS/℃ |
| Sensitivity temperature drift | ±0.03%FS/℃ |
| Long term stability | ≤0.2%FS/year |
| Overload pressure | 200%FS |
| Frequency response (-3dB) | 5kHz~650kHz |
| Electrical connection * | DIN connector type, M12 circular connector type, direct lead wire type |
| Thread of pressure connection * | G1/2, M20*1.5 |
| Response time | ＜10ms |
| Operating temperature | -40~+80℃ (-40~+176℉) |
| Medium temperature | -40~+60℃ (-40~+140℉) |
| Material | Housing: 304 stainless steel Fill fluid: silicon oil Pressure port: 304 stainless steel, or 316L stainless steel (customizable) Separating diaphragm: 304 stainless steel, or 316L stainless steel (customizable) Sealing: FKM (medium temperature ≤ +200℃/+392℉), EPDM, NBR |
| Cable length | 2m |
| Protection class | IP65 |
Note: * denotes optional parameters, you can select every parameter in drop-down lists to finish your order.
Pressure sensor dimension drawing (unit: mm):
Pressure sensor wiring diagram:
Tips: Why the pressure sensor output signal is smaller than 4mA?
