| 원래 장소: | 중국 |
| 브랜드 이름: | RUIJIA |
| 인증: | CE |
| 모델 번호: | RJ |

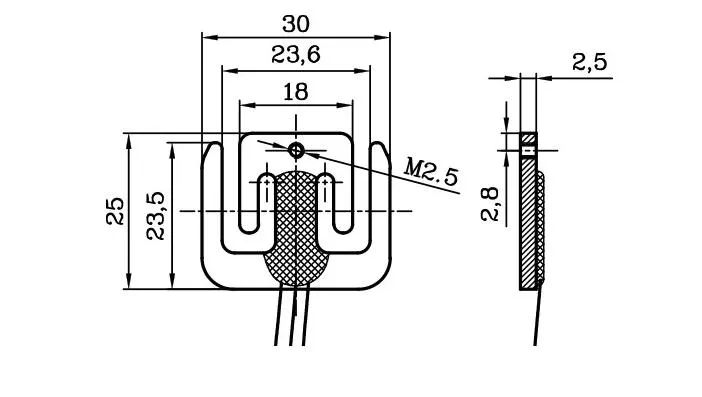

Product size drawing
Product parameter list
| capacity | Kg | 50Kg |
| Rated Output | mv/v | 1.0±0.2 |
| Non-linearity | %F.S | 0.3 |
| Hysteresis | %F.S | 0.3 |
| Repeatability | %F.S | 0.3 |
| Creep | %F.S/3min | 0.3 |
| Temp.effect on zero | %F.S/10ºC | 0.3 |
| Temp.effect on span | %F.S/10ºC | 0.3 |
| Zero balance | mv/v | ±0.2 |
| Input impedance | Ω | 1000±10 |
| Output impedance | Ω | 1000±5 |
| Insulation resistance | MΩ | ≥2000(100VDC) |
| Recommended excitation voltage | VDC | 3~12 |
| Allowed excitation voltage | VDC | 5~15 |
| Compensated temp.Range | ºC | -10ºC~+40ºC |
| Operating temp.Range | ºC | -20ºC~+60ºC |
| Safe overload | %F.S | 120 |
| Ultimate Overload | %F.S | 150 |
| Connection | Excitation: White:E+ Black:E- | |
| Signal: Red:S+ | ||
