Crane Scale Load Cell 5-30 Ton IP68 Waterproof Alloy Steel

제품 상세정보:

원래 장소:	중국
브랜드 이름:	RJ
인증:	CE/ROSE
모델 번호:	RJ

상세 정보

원래 장소:

중국

브랜드 이름:

인증:

CE/ROSE

모델 번호:

설명:

계량 센서 모듈

용량:

5-1000N, 0.5ton-100ton

입력 저항:

385 ± 15 옴 765 ± 15 옴

여자 전압:

10VDC

작동 온도. 범위:

-20~+60℃

방수 등급:

IP68

강조하다:

High Light

강조하다:

30 ton crane scale load cell

IP68 waterproof load cell sensor

alloy steel load cell sensor

거래 정보

최소 주문 수량:

가격:

$50-150

포장 세부 사항:

통 또는 나무 상자

배달 시간:

5~8일

지불 조건:

L/C,D/A,D/P,T/T,Western 통합

공급 능력:

2000PC/Month

제품 설명

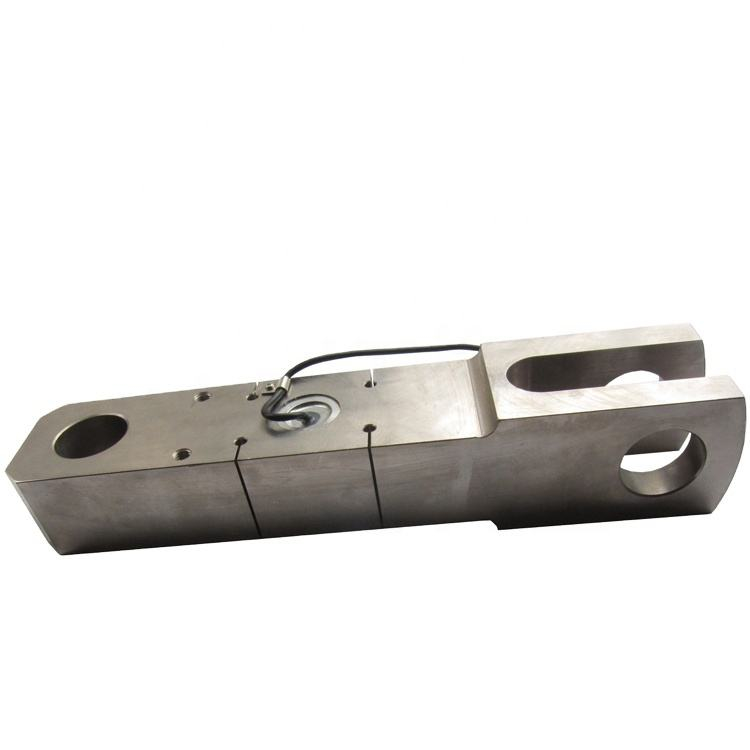

Crane Scale load cell 5 ton 10 ton 20 ton 30 ton

Crane Scale Load Cell 5-30 Ton IP68 Waterproof Alloy Steel 0

Capacity: 3Ton to 30Ton
Accuracy: C2
Application: Crane scale
Material: Alloy steel

Feature: Alloy steel structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments

Parameter:

Application	Crane scale
Model	RJ
Capacity	3T, 5T, 10ton, 20ton, 30ton
rated output	2.0±0.02mV/V
Accuracy class	C2
maximum number of verification intervals	2000Nmax
Minimum loadcell cerification intervals	Emax/5000 Vmin
Combined error	≤±0.030 % RO
Creep	0.02%RO/30min
Temp. effect on sensitivity	0.0016 %RO/℃
Temp.effect on zero	0.0026%RO/℃
Zero balance	±1.0 %RO
Input resistance	380±5 ohm
Output resistance	350±3 ohm
insulation resistance	5000 MΩ(50V)
Recommended excitation voltage	5-15V
Compensated temperature range	-10-+40℃
operating temperature range	-35-+80 ℃
safe overload	150 %RO
Ultimate overload	200%RO
loadcell material	Alloy steel
Connecting cable	Φ5.7x0.5m
Method of connecting wire	Red- input+, black- Input-. Green- Output+, White- output -

Crane Scale Load Cell 5-30 Ton IP68 Waterproof Alloy Steel 1

Crane Scale Load Cell 5-30 Ton IP68 Waterproof Alloy Steel 2

Crane Scale Load Cell 5-30 Ton IP68 Waterproof Alloy Steel 3

Crane Scale Load Cell 5-30 Ton IP68 Waterproof Alloy Steel 4

Crane Scale Load Cell 5-30 Ton IP68 Waterproof Alloy Steel 5
