Stainless Steel Compression Load Cell 5-500kg Analog Output

제품 상세정보:

원래 장소:	중국
브랜드 이름:	RJ
인증:	CE/ROSE
모델 번호:	RJ

상세 정보

원래 장소:

중국

브랜드 이름:

인증:

CE/ROSE

모델 번호:

출력:

아날로그 센서

용량:

5-500kg

민감도:

1.5 ± 0.2 % MV/V.

여자 전압:

5 ~ 12 VDC

안전한 과부담:

150% RC

소재:

스테인리스 스틸

강조하다:

High Light

강조하다:

Stainless Steel Load Cell 500kg

Analog Output Load Cell Sensor

Compression Load Cell 5kg

거래 정보

최소 주문 수량:

가격:

$40-50

포장 세부 사항:

통 또는 나무 상자

배달 시간:

5~8일

지불 조건:

L/C,D/A,D/P,T/T,Western 통합

공급 능력:

2000PC/Month

제품 설명

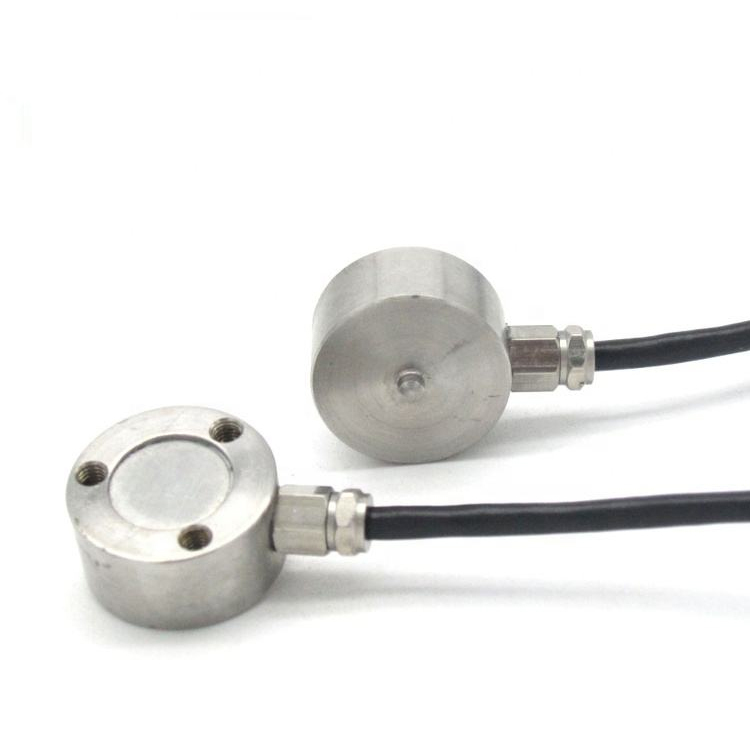

Compression type sub miniature button load cell 300kg 500kg

Stainless Steel Compression Load Cell 5-500kg Analog Output 0

Capacity	5kg-500kg
Sensitivity	0.5~1.5 mv/V
Precision	0.5 %F·S
Creep	±0.2 %F·S/30min
Non-linearity	±0.5 %F·S
Hysteresis error	±0.5 %F·S
Repeatability	±0.5 %F·S
Zero temperature coefficient	±0.2 %F·S/10℃
Temperature Effect On Output	±0.2 %F·S/10℃
Input resistance	500 ± 20 Ω
Output resistance	500 ± 20 Ω
Insulation resistance	≥ 2000 MΩ
Excitation voltage	5 ~ 15 VDC
Working temp. range	-20 ~ 70℃
Safety overload	150 %F·S
Sealing grade	IP67
Material	Stainless steel
Wiring	Red: EXC+, Green: EXC- , Yellow: SIG+, White: SIG-

Stainless Steel Compression Load Cell 5-500kg Analog Output 1

Packing & Transport

Stainless Steel Compression Load Cell 5-500kg Analog Output 2
