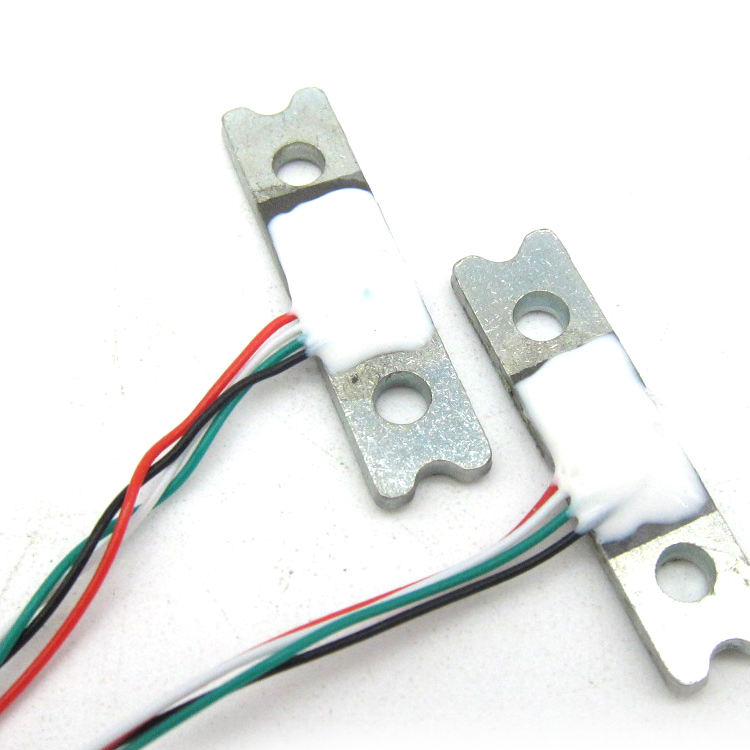

Aluminum Fishing Scale Load Cell Sensor 10-50kg Capacity

제품 상세정보:

원래 장소:	중국
브랜드 이름:	RJ
인증:	CE/ROSE
모델 번호:	RJ

상세 정보

원래 장소:

중국

브랜드 이름:

인증:

CE/ROSE

모델 번호:

용량:

10, 20, 30, 40, 50 kg

설명:

낚시 가루 로드 셀

반복 가능성:

0.1% fs

소재:

알루미늄

이력현상:

0.2% fs

출력 저항:

1000 ± 10 옴

강조하다:

High Light

강조하다:

aluminum fishing scale load cell

50kg capacity load cell sensor

fishing scale sensor 10-50kg

거래 정보

최소 주문 수량:

가격:

$2-5

포장 세부 사항:

통 또는 나무 상자

배달 시간:

5~8일

지불 조건:

L/C,D/A,D/P,T/T,Western 통합

공급 능력:

2000PC/Month

제품 설명

Fishing Scales Small Size Flat Load Cell Weight Sensor 30kg 40kg 50Kg

Aluminum Fishing Scale Load Cell Sensor 10-50kg Capacity 0

Parameters

Application	finshing scale
Model	RJ
Capacity	10kg, 20kg, 30kg
Comprehensive Error	0.2
Output sensitivity	1.0±0.1mV/V
Nonlinearity	0.01% F.S.
Repeatability	0.1% F.S.
Hyteresis	0.2% F.S.
Creep	0.1 (3min) % F.S.
Zero balance	0.1 (1min) % F.S.
Temp.effect on zero	0.2 % F.S./10℃
Temp. effect on span	≤0.15 F.S./10℃
Zero output	±0.3 MV/V
Input resistance	1000±50 ohm
Output resistance	1000±50 ohm
insulation resistance	≥2000 MΩ
Recommended excitation voltage	5-10V
Compensated temperature range	-10-+50℃
Ultimate overload	150%RO
loadcell material	Aluminum alloy

Aluminum Fishing Scale Load Cell Sensor 10-50kg Capacity 1

Packing & Transport

Aluminum Fishing Scale Load Cell Sensor 10-50kg Capacity 2

FAQ

Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.

Q: What detailed information do I need to provide if I want to place an order?

We need to know the following information:
Capacity, Usage and other related parameters you need.

Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.

Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.

Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.

Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.

Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
