| 원래 장소: | 중국 |
| 브랜드 이름: | RJ |
| 인증: | CE/ROSE |
| 모델 번호: | RJ |
Features:

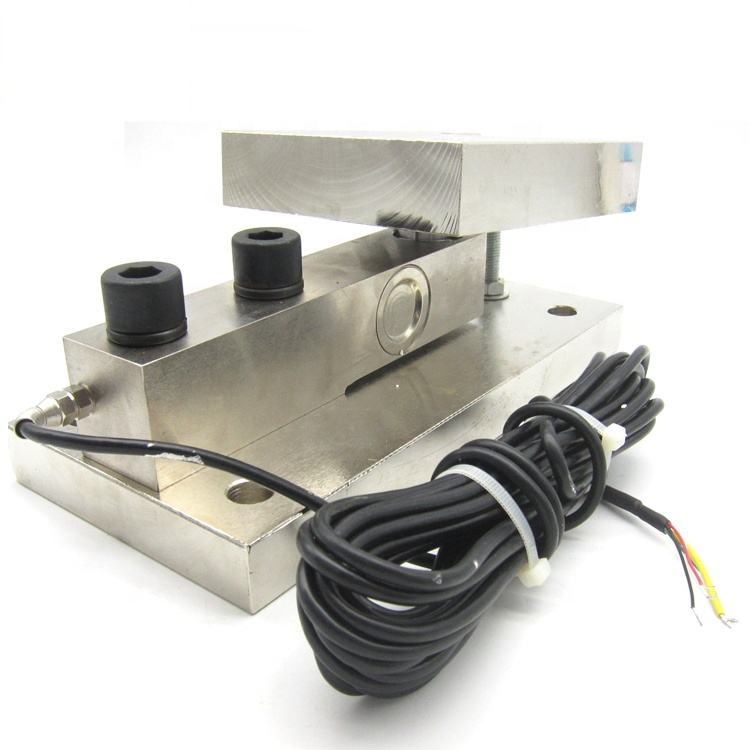

Model: RJ (with mounting module)
Rated load: 0.5-50T
Precision: C2 / C3
Safe overload:150%
Ultimate overload: 200%
Material: Alloy steel
Apply to: Truck scale or silo / tank / bin weighing system
Parameters:
| Application | Floor scale |
| Model | RJ |
| Capacity | 0.5t, 1t, 2t, 3t, 5t, 8t, 10t, 20t, 30t, 50t |
| rated output | 2.0±0.004mV/V |
| Accuracy class | C2 C3 |
| maximum number of verification intervals | 2000 Nmax 3000 Nmax |
| Minimum loadcell cerification intervals | Emax/5000Vmin Emax7500 Vmin |
| Combined error | ≤±0.030 % RO ≤±0.020 % RO |
| Creep | 0.02%RO/30min |
| Temp. effect on sensitivity | 0.0016 %RO/℃ 0.0014 %RO/℃ |
| Temp.effect on zero | 0.005%RO/℃ 0.002%RO/℃ |
| Zero balance | ±1.0 %RO |
| Input resistance | 365±10ohm 1050 ±10 ohm (optional) |
| Output resistance | 350±3 ohm 1000 ±5 ohm (optional) |
| insulation resistance | 5000 MΩ(50V) |
| Recommended excitation voltage | 8-15V |
| Compensated temperature range | -10-+40℃ |
| operating temperature range | -35-+80 ℃ |
| safe overload | 120 %RO |
| Ultimate overload | 200%RO |
| loadcell material | alloy steel -IP67 stainless steel |
| Connecting cable | 0.5~3Ton: Φ5.7x3.5 m / 5t~8t: Φ5.7 x 8 m / 10t~50t: Φ6.3x13 m |
| Method of connecting wire | Red- input+, black- Input-. Green- Output+, White- output - |
